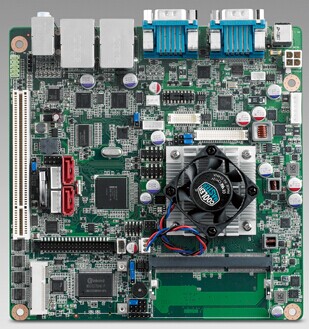

研華MINI-ITX工業母板AIMB-214 多USB多串口主板：搭載 Intel®Atom™處理器N2600, N2800和D2550雙核 ƒƒ 1個204針SODIMM，4 GB DDR3 1066 MHz SDRAM ƒƒ 支持1個PCI和1個Mini-PCIe擴展插槽，6個串行端口，6個USB以及Cfast ƒƒ Lower total cost of ownership with DC12V support and support 18/24-bit ƒƒ LVDS ƒƒ 板載TPM 1.2（可選） ƒƒ 支持嵌入式軟件API和實用工具
Intel� Atom™ N2600/N2800/D2550 Mini-ITX
單板電腦，支持CRT/HDMI/LVDS/eDP、6個
COM和雙LAN單板電腦，支持CRT/HDMI/LVDS/
eDP、6個COM和雙LAN
研華MINI-ITX工業母板AIMB-214參數：
| AIMB-214E-S6A1E | AIMB-214U-S6A1E | ||
|---|---|---|---|
|
Quote
|
Quote
|
||
| Expansion | Slots | PCI, Mini-PCIe | PCI, Mini-PCIe |
| Form Factor | Form Factor | mini ITX | mini ITX |
| Processor | CPU | Intel Atom D2550 | Intel Atom N2600 |
| CPU TDP | 10 W | 3.5 W | |
| Frequency | 1.86 GHz | 1.6 GHz | |
| Core Number | 2 | 2 | |
| L2 Cache | 1 MB | 1 MB | |
| BIOS | AMI EFI 16Mbit | AMI EFI 16Mbit | |
| Chipset | Intel NM10 | Intel NM10 | |
| Memory | Technology | DDR3 1066MHz | DDR3 1066MHz |
| Max. Capacity | 4 GB | 4 GB | |
| Socket | 1 x 204-pin SODIMM | 1 x 204-pin SODIMM | |
| Display | Controller | Intel D2550 iIntergrated | Intel N2600 iIntergrated |
| Graphic Memory | Shared system memory up to 224 MB SDRAM | Shared system memory up to 224 MB SDRAM | |
| LCD (TTL/LVDS/eDP) | LVDS1 Support 24-bit dual channel up to 2560 x 1600 LVDS2 Support 24-bit single channel up to 1400 x 800 | LVDS1 Support 24-bit dual channel up to 1600 x 1200 LVDS2 Support 24-bit single channel up to 1366 x 768 | |
| VGA | up to SXGA 1920 x 1200 | up to SXGA 1920 x 1200 | |
| DDI (HDMI/DVI/DisplayPort) | HDMI : 1920 x 1200 @ 60 MHz | HDMI : 1920 x 1200 @ 60 MHz | |
| Video Interface | VGA+LVDS, VGA+HDMI, VGA+eDP | VGA+LVDS, VGA+HDMI, VGA+eDP | |
| Multiple Display | Dual | Dual | |
| Expansion | Slot Type | 1 | 1 |
| PCI | 1 | 1 | |
| Ethernet | Controller | GbE1: Intel 82574L/82583V co-lay GbE2: Intel 82583V | GbE1: Intel 82574L/82583V co-lay GbE2: Intel 82583V |
| Speed | 10/ 100/ 1000 Mbps | 10/ 100/ 1000 Mbps | |
| Connector | RJ45 x 2 | RJ45 x 2 | |
| Audio | Audio Interface | HD Audio | HD Audio |
| CODEC | Realtek ALC892, High Definition Audio (HD) | Realtek ALC892, High Definition Audio (HD) | |
| Connector | 3 (Line-in, Line out, Mic-in) | 3 (Line-in, Line out, Mic-in) | |
| Watchdog Timer | WatchDog Timer | Yes | Yes |
| Storage | SATA | 2 x SATA II (Max. Data Transfer Rate 300 MB/s) | 2 x SATA II (Max. Data Transfer Rate 300 MB/s) |
| mSATA | mini PCIe switch mSATA | mini PCIe switch mSATA | |
| CFast | 1 | 1 | |
| I/O | USB2.0 | 6 | 6 |
| GPIO | 1 | 1 | |
| COM Port | 2 (2 x RS232, 1 x RS232/ 422/ 485) | 2 (2 x RS232, 1 x RS232/ 422/ 485) | |
| Keypad | 2 | 2 | |
| Power | Power Type | ATX, AT | ATX, AT |
| Connector | DC in, ATX | DC in, ATX | |
| Power Adaptor | Yes | Yes | |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) |
| Non-Operational Temperature | -40~ 85° C | -40~ 85° C | |
| Vibration Resistance | 3.5 Grms (non OP) | 3.5 Grms (non OP) | |
| Physical | Dimension (mm) | 170x 170 mm (without heatsink) | 170x 170 mm (without heatsink) |
| Weight | 1.04 kg (1.72 lb), weight of total package | 1.04 kg (1.72 lb), weight of total package | |
| Construction | with CPU cooler design | with fanless design | |
| Operating System | Microsoft Windows | Yes | Yes |
| Linux | Yes | Yes | |
| SUSIAccess | Yes | Yes | |
| Certification | EMC | CE, FCC | CE, FCC |
研華MINI-ITX工業母板AIMB-214訂購熱銷15062244194；
