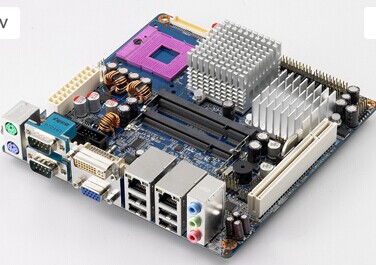

研華MINI-ITX工業母板AIMB-256 雙千兆網口/雙顯示/4串口
兩根200 針腳 SODIMM 雙通道 DDR II 533/667/800 內存到4GB
研華MINI-ITX工業母板AIMB-256詳細參數：
| AIMB-256G2-00A1E | ||
|---|---|---|
|
Quote
Build
|
||
| Form Factor | Form Factor | mini ITX |
| Processor | CPU | Intel Core 2 Duo T7500 / Intel Celeron M 550 / Intel ULV Core 2 Duo U7500 |
| CPU TDP | 35 W / 31 W / 10 W | |
| Frequency | 2.2 GHz / 2.0 GHz / 1.06 GHz | |
| Core Number | 2 / 1 / 2 | |
| L2 Cache | 4 MB / 1 MB / 2 MB | |
| BIOS | AMI SPI 16 Mbit | |
| Chipset | Intel GME965, ICH8M | |
| Memory | Technology | DDR2 533 / 667 MHz |
| Max. Capacity | 4 GB | |
| Socket | 2 x 200-pin SODIMM | |
| Display | Controller | Intel GME965 GMCH integrated |
| Graphic Memory | Share with system memory up to 384 MB | |
| LCD (TTL/LVDS/eDP) | LVDS: Single channel 18/24-bit / Dual channel 36/48-bit | |
| DDI (HDMI/DVI/DisplayPort) | DVI | |
| Multiple Display | Dual | |
| Expansion | PCI | 1 |
| Ethernet | Controller | GbE1: Realtek RTL8111E; GbE2: Realtek RTL8111E |
| Speed | 10/ 100/ 1000 Mbps | |
| Connector | RJ45 x 2 | |
| Audio | Audio Interface | HD Audio |
| CODEC | Realtek ALC892, High Definition Audio (HD) | |
| Connector | 3 (Mic-in, Line-out, Line-in) | |
| Watchdog Timer | WatchDog Timer | Yes |
| Storage | SATA | 3 x SATA II (Max. Data Transfer Rate 300 MB/s) |
| IDE | 1 | |
| CompactFlash | Supports CompactFlash Type I/II | |
| I/O | USB2.0 | 10 |
| GPIO | 1 | |
| COM Port | 2 ( 2 x RS-232 ) | |
| Keypad | 2 | |
| TPM | Yes | |
| Power | Power Type | ATX, AT |
| Connector | ATX20P | |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Non-Operational Temperature | -20~ 70° C | |
| Vibration Resistance | 3.5 Grms (non OP) | |
| Physical | Dimension (mm) | 170x 170 mm (without heatsink) |
| Weight | 1.04 kg (1.72 lb), weight of total package | |
| Construction | with CPU cooler design | |
| Operating System | Microsoft Windows | Yes |
| Linux | Yes | |
| SUSIAccess | Yes | |
| Certification | EMC | CE, FCC |
研華MINI-ITX工業母板AIMB-256中文版參考：
