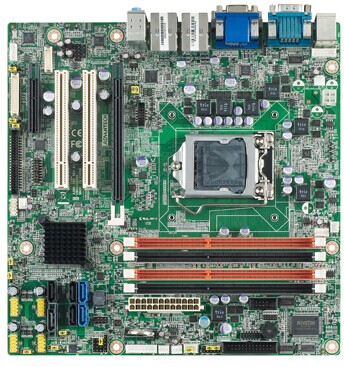

研華搭載Intel® Xeon® / Core™ i7/i5/i3處理器的MicroATX主板，帶CRT/DVI/LVDS/DP/eDP顯示輸出接口，6個COM輸出接口，帶DDR3和SATAIII，雙千兆網口
研華MicroATX主板AIMB-582產品參數：
| Form Factor | Form Factor | Micro ATX |
| Processor | CPU | Intel Core i7-3770 / i7-2600 / i5-3550S / i5-2400 / i3-3220 / i3-2120 / Pentium G2120 / Pentium G850 / Celeron G540 |
| CPU TDP | 95W / 77W / 65W / 55W | |
| Frequency | 2.5GHz ~ 3.4 GHz | |
| Core Number | 2 / 4 | |
| L3 Cache | 2 ~ 8MB | |
| BIOS | AMI EFI 64Mbit | |
| Chipset | Intel Q77 PCH | |
| Memory | Technology | DDR3 1333/1600 MHz |
| Max. Capacity | 32 GB | |
| ECC Support | No | |
| Socket | 4 x 240-pin DIMM | |
| Display | Controller | Intel HD Graphics |
| Graphic Engine | DirectX 11, OpenCL1.1 and OpenGL 3.1 support | |
| Graphic Memory | 1GB maximum shared memory with 2GB and above system memory installed | |
| VGA | Up to 2048 x 1563 @ 60Hz | |
| LCD (TTL/LVDS/eDP) | LVDS: Dual channel 24-bit, up to 2560x1600 at 60 Hz eDP: 1920 x 1600 @ 60Hz | |
| DDI (HDMI/DVI/DisplayPort) | DVI: 1920 x 1200 @ 60Hz DisplayPort: 2560 x 1600 @ 60Hz | |
| Multiple Display | Dual/ Triple | |
| Expansion | PCI Express x 16 | 1 |
| PCI Express x 4 | 1 | |
| PCI | 2 | |
| SMBus | 1 | |
| Ethernet | Controller | GbE1: Intel 82579LM GbE2: Intel 82583V |
| Speed | 10/ 100/ 1000 Mbps | |
| Connector | RJ45 x 2 | |
| Audio | Audio Interface | HD Audio |
| CODEC | Realtek ALC892, High Definition Audio (HD) | |
| Connector | 2 (Line out, Mic-in) | |
| Watchdog Timer | WatchDog Timer | Yes |
| Storage | SATA | 4 x SATAII (Max. Data Transfer Rate 300 MB/s) 2 x SATAIII ( (Max. Data Transfer Rate 600 MB/s) |
| RAID | Software RAID 0, 1, 5, 10 | |
| I/O | USB3.0 | 4 |
| USB2.0 | 8 | |
| GPIO | 8-bit GPIO | |
| LPT | 1 | |
| COM Port | 6 ( 5 x RS232, 1 x RS232/ 422/ 485) | |
| Keypad | 1 | |
| TPM | Optional | |
| Smart Fan | 5 | |
| Power | Power Type | ATX |
| Connector | ATX24P | |
| Power Consumption (Idle) | 1.91A @ 5V / 0.27A @ 3.3V / 0.64A @ 12V / 0.16A @ 5Vsb / 0.14A @ -12V | |
| Power Consumption (Full Load) | 2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V | |
| Battery | Lithium 3 V / 200 mAh | |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature | -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing | |
| Vibration Resistance | 3.5 Grm (Non-Operation Mode) | |
| Physical | Dimension (mm) | 244 x 244 mm |
| Weight | 1.2 kg (2.64 lb), weight of total package | |
| Operating System | Microsoft Windows | Yes |
| Linux | Yes | |
| SUSIAccess | Yes | |
| Certification | EMC | CE, FCC |
研華MicroATX主板AIMB-582參數中文版參考：
