研華FPM-2150G|研華工業顯示器介紹：

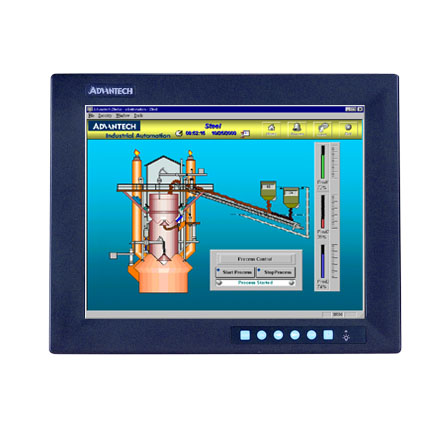

FPM-2150G是一款15” TFT LCD工業平板顯示器。它采用鋁鎂前面板，是15”LCD顯示器市場中具競爭力的產品之一。FPM-2150G還采用了輕薄設計，并提供多種工業級功能，如符合NEMA4/IP65標準的前面板、不銹鋼機箱、VESA安裝靈活性等。FPM-2150G非常適合與工業電腦如IPC-610或IPC- 6806等一起使用。這種組合讓您的系統工作更加穩定和可靠，可以在任何工業應用中使用。
詳細參數：
| FPM-2150G-RCE | FPM-2150G-XCE | ||
|---|---|---|---|
| Environment | Humidity | 10% ~ 95% non-condensing | 10% ~ 95% non-condensing |
| Operating Temperature | 0 ~ 50° C (32 ~ 122° F) | 0 ~ 50° C (32 ~ 122° F) | |
| Storage Temperature | -20 ~ 60° C (-4 ~ 140° F) | -20 ~ 60° C (-4 ~ 140° F) | |
| Vibration | 5 ~ 500 Hz, 1 Grms (Operating, Random) | 5 ~ 500 Hz, 1 Grms (Operating, Random) | |
| Waterproof | Front panel: IP65 | Front panel: IP65 | |
| General | Button Controls | OSD (Onscreen Display) control pad on front panel | OSD (Onscreen Display) control pad on front panel |
| Certifications | BSMI, CCC, CE, FCC, UL | BSMI, CCC, CE, FCC, UL | |
| Dimensions (W x H x D) | 383 x 307 x 48 mm (15" x 12" x 1.9") | 383 x 307 x 48 mm (15" x 12" x 1.9") | |
| Enclosure |
Front panel: Aluminum with hard anodizing coating Rear cover : Stainless steel Ground Isolation Protection |
Front panel: Aluminum with hard anodizing coating Rear cover : Stainless steel Ground Isolation Protection |
|
| Mounting | Panel, wall, desktop, VESA arm, or 19" rackmount with optional mounting kit | Panel, wall, desktop, VESA arm, or 19" rackmount with optional mounting kit | |
| Power Input | External 50 W power adapter, with AC 100 V ~ 240 V, input and DC +12 V @ 4.16 A output | External 50 W power adapter, with AC 100 V ~ 240 V, input and DC +12 V @ 4.16 A output | |
| Video Port | VGA | VGA | |
| Weight (Net) | 5.60 kg (12.34 lbs) | 5.60 kg (12.34 lbs) | |
| LCD Display | Backlight Life (hrs) | 50,000 | 50,000 |
| Contrast Ratio | 500 : 1 | 500 : 1 | |
| Display Size | 15" | 15" | |
| Display Type | XGA TFT LCD | XGA TFT LCD | |
| Luminance (cd/m2) | 250 | 250 | |
| Max. Colors | 16.2M | 16.2M | |
| Max. Resolution | 1024 x 768 | 1024 x 768 | |
| Viewing Angle (H/V°) | 140, 130 | 140, 130 | |
| Touchscreen (Optional) | Interface | Combo RS-232 & USB interface | Combo RS-232 & USB interface |
| Light Transmission | > 80% | > 80% | |
| OS Support | Windows® 2000/XP/CE/Vista, Linux | Windows® 2000/XP/CE/Vista, Linux | |
| Sensor | AMT | AMT | |
| Touch Resolution | Linearity | Linearity | |
| Type | 5-wire Resistive | 5-wire Resistive |
| 產品描述 | Get Quote | |
|---|---|---|
| FPM-2150G-RCE | FPM-2150G-XCE with Resistive Touchscreen (RS-232 and USB interfaces) | Get Quote |
| FPM-2150G-XCE | 15" Industrial Monitor with Direct-VGA port | Get Price |
