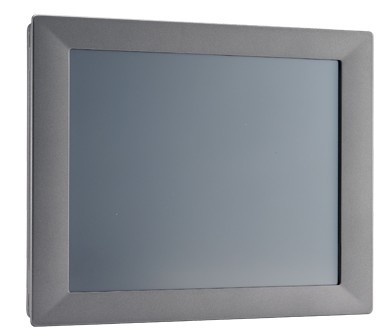

研華TPC-1250H嵌入式平板電腦產品介紹：
延續TPC產品系列的優質特性，TPC拓展了它5.7", 12.1" & 15" Intel® Atom™ 平臺觸摸式平板電腦系列。TPC-1250H 以Intel® Atom™1.6GHz處理器為核心，擁有低功耗和1.6GHz操作頻率。緊湊型、無風扇外觀設計滿足基于網絡(luò )的終端解決方案需求。因此，在 windows操作系統中，也包含了Java Script的程序支持，在Linux操作系統中, 我們提供火狐瀏覽器。
規格參數
| TPC-1250H-N2AE | TPC-1250H-N2BE | ||
|---|---|---|---|
| Environment | Humidity | 10 ~ 95% RH @ 40° C, non-condensing | 10 ~ 95% RH @ 40° C, non-condensing |
| Ingress Protection | Front panel: IP65 | Front panel: IP65 | |
| Operating Temperature | 0 ~ 45° C (32 ~ 113° F) | 0 ~ 45° C (32 ~ 113° F) | |
| Storage Temperature | -20 ~ 60°C (-4 ~ 140°F) | -20 ~ 60°C (-4 ~ 140°F) | |
| Vibration Protection | 2 Grms (5 ~ 500 Hz) | 2 Grms (5 ~ 500 Hz) | |
| General | BIOS | Award® 4 MB | Award® 4 MB |
| Certifications | BSMI, CCC, CE, FCC Class A, UL | BSMI, CCC, CE, FCC Class A, UL | |
| Cooling System | Fanless design | Fanless design | |
| Dimensions (W x H x D) | 311 x 237 x 54 mm (12.24" x 9.33" x 2.12") | 311 x 237 x 54 mm (12.24" x 9.33" x 2.12") | |
| Enclosure |
Die-cast aluminum alloy Back housing: SECC |
Die-cast aluminum alloy Back housing: SECC |
|
| Mounting | Desktop, Wall or Panel Mount | Desktop, Wall or Panel Mount | |
| OS Support | Microsoft® Windows® 7/XPE/WES, Windows CE 5.0/6.0 with Java Script, Linux with Firefox explorer and Java Script plugin | Microsoft® Windows® 7/XPE/WES, Windows CE 5.0/6.0 with Java Script, Linux with Firefox explorer and Java Script plugin | |
| Power Consumption | 35 W (typical) | 35 W (typical) | |
| Power Input | 18 ~ 28 VDC | 18 ~ 28 VDC | |
| Watchdog Timer | 1 ~ 255 sec (system) | 1 ~ 255 sec (system) | |
| Weight (Net) | 2.5 kg (5.51 lb) | 2.5 kg (5.51 lb) | |
| LCD Display | Backlight Life (hrs) | 50,000 | 50,000 |
| Contrast Ratio | 700:1 | 700:1 | |
| Display Size | 12.1" | 12.1" | |
| Display Type | SVGA TFT LED LCD | SVGA TFT LED LCD | |
| Luminance (cd/m2) | 450 | 450 | |
| Max. Colors | 262 K | 262 K | |
| Max. Resolution | 800 x 600 | 800 x 600 | |
| Viewing Angle (H/V°) | 160/140 | 160/140 | |
| System Hardware | Chipset | Intel® 945GSE+ICH7M | Intel® 945GSE+ICH7M |
| CPU | Intel® Atom™ N270 1.6 GHz | Intel® Atom™ N270 1.6 GHz | |

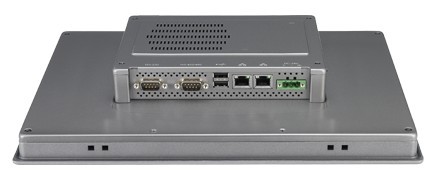

| I/O | RS-232 x1, RS-232/422/485 x 1, USB 2.0 x 2 (Host) | RS-232 x1, RS-232/422/485 x 1, USB 2.0 x 2 (Host) | |
| LAN | 10/100/1000Base-T x 2 | 10/100/1000Base-T x 2 | |
| Memory | 2GB SO-DIMM DDR2 667 SDRAM | 2GB SO-DIMM DDR2 667 SDRAM | |
| Storage | CFast slot x 1, Optional, external 2.5" SATA HDD kit | CFast slot x 1, Optional, external 2.5" SATA HDD kit | |
| Touchscreen | Lifespan | 10 million touches at single point | 10 million touches at single point |
| Light Transmission | Above 75% | Above 75% | |
| Type | 5-wire, analog resistive | 5-wire, analog resistive |
